Troubleshoot operation

Start with the indicator or message that changed. Check whether the problem is on this device, the shared Core, or the radio link before changing settings. For shared receiver and transmit access, use the ownership steps in chapter 8; another device's slice can be visible while remaining read-only.

The desktop cannot connect to the radio

1. Open Radio > Connections… (or Manage Radios… in a radio-panel window) and follow the connection flow for this window. In Connections, scan for and select the radio, then click its Connect button. A dedicated remote window using Manage Radios… can open This Core instead; inspect that Core's radio and link state.
2. If the radio is absent from discovery, confirm its power and this computer's network, then scan again. Use Add Radio… in the Connections picker, or Add Manually… in the local radio panel, for a known radio address.
3. For a Core session, inspect Settings > Cores > Your Cores > Overview for this window's current control and audio/display paths, then Audio with the Core for format/health and Retry audio when enabled. Open Tools > Network Diagnostics... to inspect the network state. Check cabling, interface selection, and the route between the computer/Core and radio. Retry from the connection dialog and confirm the connection indicator changes.

Radio > Connect reconnects the last selected target when available. Use Connections… when choosing or changing a picker target. For a saved Core address, inspect Settings > Cores > Your Cores > Addresses; retaining a verified address does not switch the current connection.

Do not infer that a radio is connected merely because the application opened. The spectrum and radio status indicators should update after connection.

The iPhone cannot reach its Core

Read the Core isn't answering sheet and its tried-path results. If it says local-network access is denied, open iOS Settings > Privacy & Security > Local Network, allow NereusSDR, then tap Try again. Otherwise check that the Core computer is awake, its NereusSDR Core switch is on, and the home internet or intended remote route is available. Reconnect on the same Wi-Fi first when at the station. If the app says the Core or app needs updating, follow the named side of the version message; the sheet says which one must be updated.

An older Core may connect while leaving individual Tools entries marked as needing a newer Core. That is a feature/version limitation, not a failed radio link.

There is no receive audio

On desktop, confirm the selected slice is receiving, unmuted, and has AF above zero. Check the computer's output device in Setup > Audio > Devices and the operating system's output volume. If the spectrum moves but audio is silent, inspect the selected audio route before changing DSP controls. For digital software, check the VAX channel meter and mute state in the VAX applet; a silent VAX path can coexist with normal speaker audio.

On iPhone/iPad, check the phone's output route and volume, then open Tools > Connection and performance. The audio charts distinguish Core source frames, received packets, phone decoding, and playback underflows. Incoming traffic alone does not prove audio reached the speaker. A rising underflow count points to phone playback or link timing; capture the time and selected route before retrying.

PTT is refused or a TCI client will not transmit

Check the selected TX slice and the transmit permission/ownership indication. When another device holds transmit, this device cannot key until a supported takeover succeeds. Desktop offers its transmit takeover workflow; the phone build covered here has no general transmit takeover action. An unheld transmitter has a separate first-human-key path, described with its RF prerequisites in phone transmit preparation. Do not repeatedly tap PTT to clear an ownership refusal. A TCI client also needs the owning window's TXcontrol. Confirm the server is running at Setup > CAT & Network > TCI Server and that the client appears in its client list. Do not troubleshoot this as an audio problem until ownership and server state are confirmed.

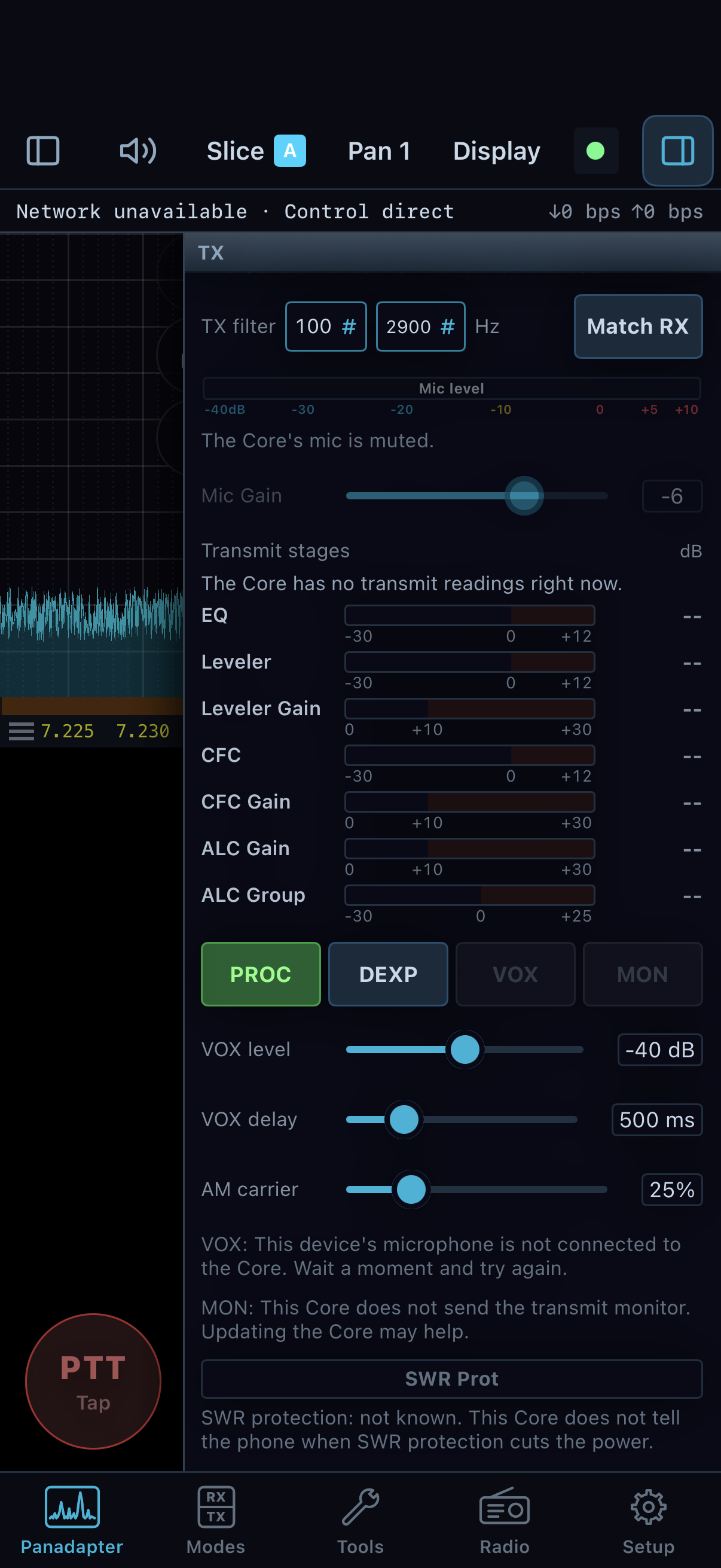

Read the reason beside the control: this example says the Core microphone is muted and that transmit readings are absent. Empty stage bars are unavailable data, not measured zero levels. The native simulator screen uses scripted Core state; the indicated values are not a voice setup recipe.

A control is greyed or a change does not stick

Read its reason before reconnecting or repeating the request. Common cases need different remedies:

A visible disabled placeholder can represent an unimplemented feature. The availability reference distinguishes those from temporarily held operating controls. Avoid using another application's instructions to activate an unimplemented NereusSDR page.

Tuning appears to act on the wrong place

Check the active slice letter, not only the applet you most recently opened. Select the intended flag or RX letter tab and compare its frequency, mode and filter. A foreign slice can remain visible while its controls are read-only. After a TX handoff, selecting a receive slice does not necessarily select TX.

For an unexpected offset, inspect both enable states and stored RIT/XIT values. Use 0 to clear an offset you no longer need. For a VFO outside the visible band, inspect CTUN and the pan's centre/span; a panned view can move without retuning. Check whether the waterfall is in history and use LIVE before interpreting a stopped trace. Use explicit units for numeric frequency entry.

If adding a slice or moving a shared receiver window is refused, read the resource/impact notice. Reduce an unnecessary slice or choose an available window rather than retrying the same allocation indefinitely. The automatic receiver allocation is described in slices and panadapters.

Audio is distorted, noisy or breaks up

Separate radio overload, receive processing, microphone overload and packet timing. They can sound similar but require different controls.

Record the observation before changing several controls. A useful comparison changes one cause, repeats the same listening conditions and restores the setting if it did not help.

Interpret desktop network diagnostics

Open Tools > Network Diagnostics... while the symptom is occurring. In a local radio window it reports the radio connection; a remote window has the Core-link diagnostics for that window. Check the heading/identity so a healthy computer-to-Core connection is not mistaken for proof of a healthy Core-to-radio connection. The desktop also provides Setup > Diagnostics > Radio Status and Connection Quality for the available station readings.

The local radio dialog groups its readings as follows:

Not measured, a dash, or a graph gap is missing evidence, not a healthy zero. Read changes across the problem interval instead of choosing a universal RTT or loss threshold. Use Reset session stats to start a comparison only after saving the current evidence. Resetting counters does not repair a link. The unbuilt 60-second Connection Quality history should not be assumed to exist.

Interpret phone connection and performance charts

Open Tools > Connection and performance. Select the section and history range, then compare the time of the symptom with the selected paths, latest connection attempt/failure and available charts. Focus, Compare and Show all change which chart series are shown. Gaps indicate unavailable readings, stale samples or connection changes; older sessions are historical.

Follow an audio break through the sequence: Core source frames, packets received by the phone, decode, and playback. If source frames stop, investigate the station side. If delivery stops while the source continues, investigate the connection path. If decode/playback falls behind despite received data, record the phone state and route. This is a way to localize the symptom, not a claim that every missing reading uniquely identifies its cause.

Where enabled, Reset session stats resets the phone diagnostics-session underruns and observed maximum radio RTT only. It does not erase every chart, every Core counter or the cellular-use counter. Save the incident readings before starting a fresh comparison.

Validate settings before repair or reset

On desktop open Setup > Diagnostics > Settings Validation and choose Re-validate. Read each issue's severity, summary and detail. With no issues, the list states that every setting is within this radio's range. A remote Core can refuse validation/repair/forget for unavailable support, lack of pairing or the station's current state; use the displayed reason.

Repair Invalid Settings asks for confirmation. It brings the supported invalid values back into range and removes settings for hardware the radio does not have. It is distinct from Forget This Radio, which removes that radio's saved settings. Before either operation, export the relevant settings, record the reported issues and arrange an off-air interval. After repair, re-validate and check the affected hardware values. Do not use Forget as a routine response to one silent slice.

On phone, use the offered settings-hygiene controls on the Core's Radio/setup page and read their confirmation, affected scope and result. Their presence and allowed actions depend on the Core. A refused repair does not mean the phone should erase its saved Core pairing.

Back up configuration and understand restore scope

Open desktop Setup > Diagnostics > Export / Import. The page explains what the available operation includes.

1. Export to a named location and inspect Export Complete or Export Failed. A selected filename alone is not a saved backup.
2. Before local import, retain the current export and check that the chosen file is the intended local XML configuration.
3. Read Replace Settings and confirm only when ready to replace that configuration and restart. Cancel preserves the current setup.
4. After Import Complete, restart NereusSDR, reconnect as needed and inspect the relevant values. On Import Failed, retain the file and error for support.

A remote export can stop if the Core connection or availability changes; retry after restoring it. Container-layout files use their own editor and layout import/export commands. They are not interchangeable with full configuration or per-radio exports. TX and mic profiles are managed in the profile editor; this build has no individual profile-file import/export. The File menu profile Import/Export entries open the Diagnostics configuration workflow. The Core identity-key backup in device management is another separate operation.

Inspect logs and reproduce an incident

Desktop Setup > Diagnostics > Logs provides Refresh and Clear. A remote window distinguishes The Core's Recent Log from This Computer's Recent Log. Clear here empties the view and keeps the log files. This is different from Clear Log in the Support dialog, which clears the local log. Preserve incident evidence before using that command.

Phone Setup > Diagnostics > Logs displays the Core's log, newest lines at the bottom. Reload reads it again; Clear empties this phone's view without deleting the Core log. Its category switches, Turn all on and Turn all off change the Core's logging for every device. The phone's own log is included in Support Bundle rather than shown on this page.

For a repeatable issue, note the time, enable the relevant offered diagnostic category, repeat the shortest procedure that causes the symptom, then collect the bundle. Category changes are station changes, so coordinate them if another operator is diagnosing the same Core. Restore the desired logging selection after gathering evidence.

Collect support information

On desktop choose Tools > Support Bundle... and use the displayed diagnostics. On iPhone/iPad open Tools > Support Bundle, tap Collect, inspect which phone/Core files are included, then tap Share to choose where to send them. The app does not send the bundle automatically. Include the time, device, Core connection state, and the steps that reproduce the issue. Avoid sharing logs or addresses outside the support channel you intend.

The desktop Support & Diagnostics dialog offers category switches, Refresh, Clear Log, Open Log Folder, and Create Support Bundle. In a remote window, the Core's category/log readings are distinct from the computer's log. Create the bundle and wait for the result and saved path; use Open Folder to locate it. If the Core's collection fails or times out, include that result and inspect what the local bundle actually contains.

On phone, What goes in identifies the phone log and whether the Core bundle is available, with a reason when it is excluded. After collection, Ready to share lists the files and any Core note. Inspect that list before Share; Collect again makes a fresh collection. The Core logging and recent-log controls below use the same Core log as Setup. Collection and sharing are separate actions.

Include the app/Core build and radio identity, expected versus actual result, frequency/mode and affected slice, ownership, audio route, network path, and the smallest reproducible steps. State whether it began after a mode, route, device, profile, rate or shared-ownership change. On Linux, Help > Diagnose audio backend provides the platform's additional audio-backend diagnostic path where offered. Help > About supplies desktop build information.
